John Deere 5100R Transmission



John Deere 5100R tractor photo
2017 -
5R Series
Utility tractor
Series:5090R ← 5100R → 5115R
Transmissions overview
16-speed
24-speed
32-speed
Transmission
Transmission:CommandQuad
Gears:16 forward and reverse
Clutch:hydraulic wet disc
Speeds
With 480/70R28 rear tires. Reverse speeds are 10% faster than forward except in D3 and D4.

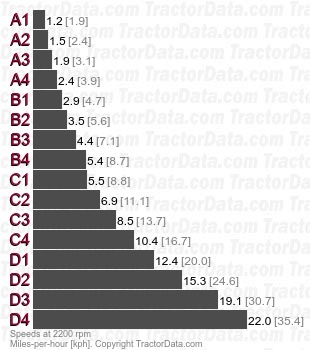

5100R CommandQuad speeds
Transmission
Transmission:CommandQuad Creeper
Gears:24 forward and reverse
Clutch:hydraulic wet disc
Speeds
With 480/70R28 rear tires.

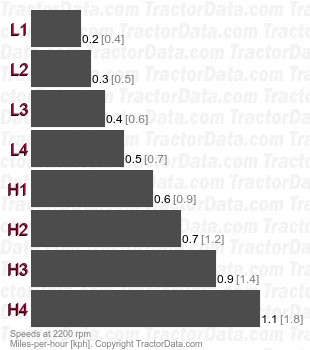

5100R CommandQuad Creeper speeds
Transmission
Transmission:Command8
Gears:32 forward and 16 reverse
Clutch:hydraulic wet disc
