Ford 976 Engine

Ford 976 tractor photo
1989 - 1993
900 Series
Four-wheel Drive (4WD) tractor
Series map:

Note: the Ford model 976 is the same as the Versatile 976. The following data is from the 976 listing.
Engine Detail
Cummins NTA-855-A360
aftercooled turbocharged diesel
liquid-cooled inline
Displacement855 ci
14.0 L
Bore/Stroke5.50x6.00 inches
140 x 152 mm
Power360 hp
268.5 kW
Air cleanerdual dry element
Pre-heatingether injection
 block heater
Rated RPM2100
Idle RPM1000-2100
Torque1170 lb-ft
1586.5 Nm
Torque RPM1400
Starter volts12
Oil capacity39.1 qts
37.0 L
Coolant capacity63.7 qts
60.3 L
Ford 976 Engine

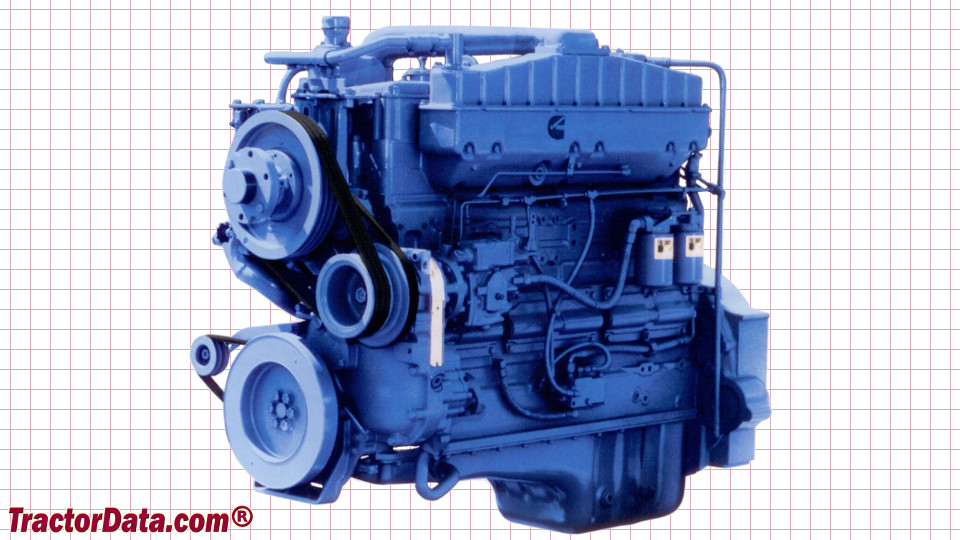

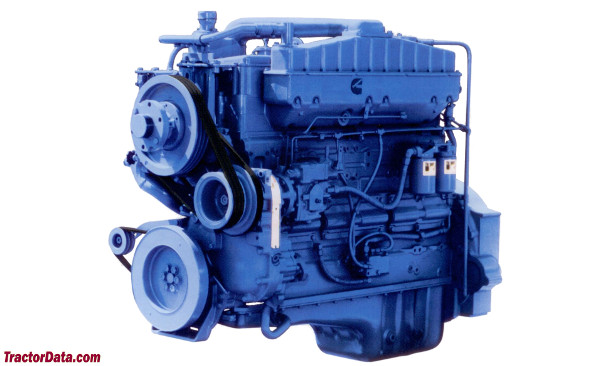

Ford 976 engine image
