Tractors > Claas > Axion 860

Claas Axion 860 Tests



Claas Axion 860 tractor photo
2018 -
Axion 800 Series
Row-Crop tractor
Series map:
Axion 850
Axion 860
Axion 880
245.0hp
250.0hp
265.0hp
OCED Tractor Test 2182

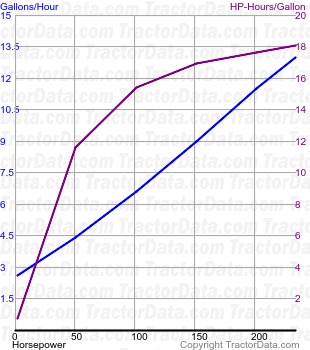

Axion 860 fuel use from test 1106
OCED Tractor Test 2182
Diesel IVT 4WD
September 14 - 29, 2017
Link: OCED Tractor Test 2182 file
PTO performance
Max power256.42 hp
191.2 kW
Fuel use13.3 gal/hour
50.3 l/hour
Power at rated engine speed233.95 hp
174.5 kW
Fuel use13.0 gal/hour
49.2 l/hour
Power at rated PTO speed253.41 hp
189.0 kW
Fuel use13.4 gal/hour
50.7 l/hour
Drawbar performance
Max power195.59 hp
145.9 kW
Fuel use12.9 gal/hour
48.8 l/hour
Pull at 9 KPH
Max pull21355 lbs
9686 kg
Pull at 4 KPH
