Tractors > Claas > Axion 820

Claas Axion 820 Tests



Claas Axion 820 tractor photo
2018 -
Axion 800 Series
Row-Crop tractor
Series map:
Axion 810
Axion 820
Axion 830
200.0hp
215.0hp
215.0hp
OCED Tractor Test 2180

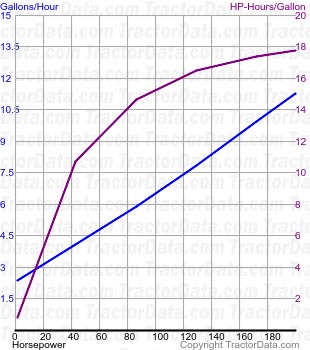

Axion 820 fuel use from test 1104
OCED Tractor Test 2180
Diesel IVT 4WD
September 12 - 29, 2017
Link: OCED Tractor Test 2180 file
PTO performance
Max power215.43 hp
160.6 kW
Fuel use11.4 gal/hour
43.1 l/hour
Power at rated engine speed199.49 hp
148.8 kW
Fuel use11.2 gal/hour
42.4 l/hour
Power at rated PTO speed212.48 hp
158.4 kW
Fuel use11.5 gal/hour
43.5 l/hour
Drawbar performance
Max power168.63 hp
125.7 kW
Fuel use11.2 gal/hour
42.4 l/hour
Pull at 9 KPH
Max pull20171 lbs
9149 kg
Pull at 4 KPH
