Kubota FT30 Transmission


No photo available
2012 - 2015
FT Granforce Series
Compact Utility tractor
KT305
Series:FT28FT30
FT300
Transmissions overview
12-speed
48-speed power shift
Transmission
Gears:12 forward and reverse
Clutch:dry disc
Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift.
Speeds

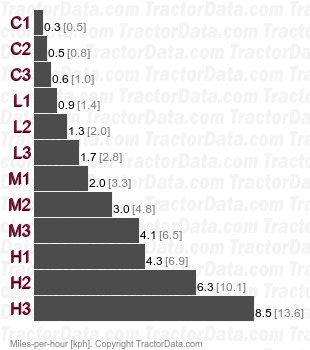

FT30   speeds
Transmission
Transmission:Glideshift
Type:power shift
Gears:48 forward and 30 reverse
Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges.
Speeds

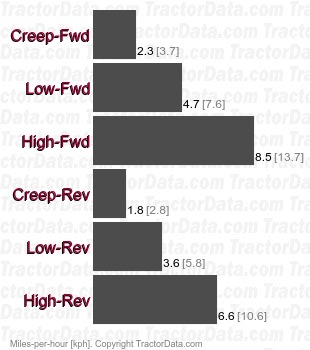

FT30 Glideshift power shift speeds
