| 2005 - 2008 |
KT Kingeye Series | Compact Utility tractor |
|
Transmissions overview |
12-speed |
48-speed power shift |
Transmission |
Gears: | 12 forward and reverse
|
Clutch: | dry disc
|
Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift. |

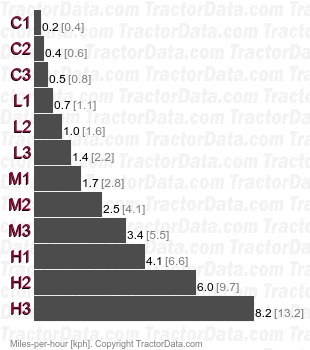

Speeds |
|
Transmission |
Transmission: | Glideshift
|
Type: | power shift
|
Gears: | 48 forward and 30 reverse
|
Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges. |

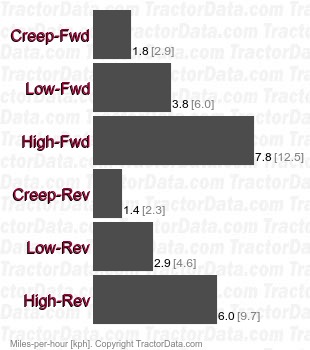

Speeds |
|
