Kubota KT27 Transmission


No photo available
2000 - 2004
KT Kingeye Series
Compact Utility tractor
Series:KT24KT27KT30
KT280
Transmissions overview
12-speed
48-speed power shift
Transmission
Gears:12 forward and reverse
Clutch:dry disc
Three gears (1-3) in four ranges (creeper, low, medium, high) with shuttle shift.
Speeds

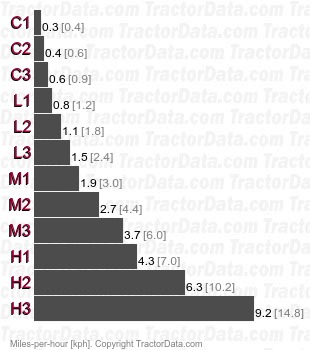

KT27   speeds
Transmission
Transmission:Glideshift
Type:power shift
Gears:48 forward and 30 reverse
Sixteen gears (10 in reverse) with three ranges. Gears may be shifted sequentially while moving, without using the clutch. Tractor must be stopped, and clutch used, to shift ranges.
Speeds
KT27 Glideshift power shift speeds
