Tractors > Minneapolis-Moline > M-670 Super

Minneapolis-Moline M-670 Super Tests



Minneapolis-Moline M-670 Super tractor photo
1966 - 1970
Row-Crop tractor
Series map:
M-670 Super
81.1hp*
*Estimated engine power for comparison only.
Tractor Tests
NTTL 924: LP gas 10-speed 2WD
NTTL 925: gasoline 10-speed 2WD
NTTL 926: diesel 10-speed 2WD
Nebraska Tractor Test 924

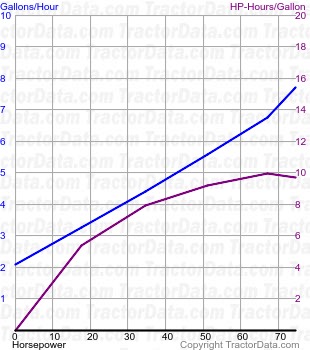

M-670 Super fuel use from test 924
Nebraska Tractor Test 924
LP gas 10-speed 2WD
November 1 - 9, 1965
Link: Nebraska Tractor Test 924 file
PTO performance
Power at rated engine speed74.2 hp
55.3 kW
Fuel use7.7 gal/hour
29.1 l/hour
Power at rated PTO speed66.10 hp
49.3 kW
Fuel use6.4 gal/hour
24.2 l/hour
Drawbar performance
Max power63.5 hp
47.4 kW
Fuel use7.6 gal/hour
28.8 l/hour
Gear 2H used for power test.
Max pull9923 lbs
4501 kg
Gear 2L used for pull test.
Nebraska Tractor Test 925

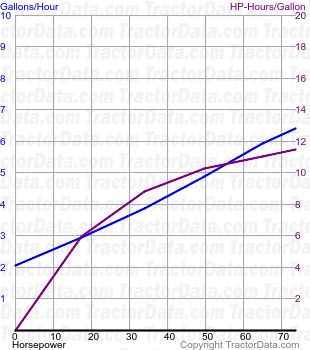

M-670 Super fuel use from test 925
Nebraska Tractor Test 925
Gasoline 10-speed 2WD
November 1 - 9, 1965
Link: Nebraska Tractor Test 925 file
PTO performance
Power at rated engine speed73.02 hp
54.5 kW
Fuel use6.4 gal/hour
24.2 l/hour
Power at rated PTO speed66.10 hp
49.3 kW
Fuel use5.7 gal/hour
21.6 l/hour
Drawbar performance
Max power62.15 hp
46.3 kW
Fuel use6.3 gal/hour
23.8 l/hour
Gear 2H used for power test.
Max pull9646 lbs
4375 kg
Gear 2L used for pull test.
Nebraska Tractor Test 926

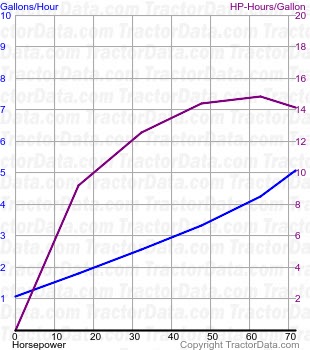

M-670 Super fuel use from test 926
Nebraska Tractor Test 926
Diesel 10-speed 2WD
November 4 - 10, 1965
Link: Nebraska Tractor Test 926 file
PTO performance
Power at rated engine speed71.01 hp
53.0 kW
Fuel use5.0 gal/hour
18.9 l/hour
Power at rated PTO speed62.51 hp
46.6 kW
Fuel use4.3 gal/hour
16.3 l/hour
Drawbar performance
Max power64.08 hp
47.8 kW
Fuel use5.1 gal/hour
19.3 l/hour
Gear 2H used for power test.
Max pull9731 lbs
4413 kg
Gear 2L used for pull test.
