CaseIH Maxxum 135 MultiController Engine


CaseIH Maxxum 135 MultiController tractor photo
2015 -
Maxxum Series
Utility tractor

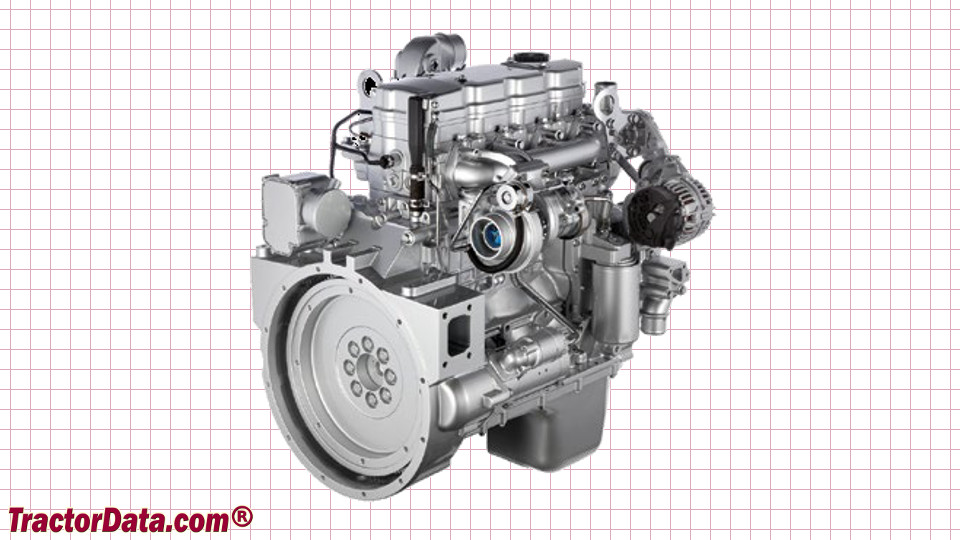

Engine Detail
FPT
turbocharged air-to-air intercooled diesel
4-cylinder 16-valve
liquid-cooled
Displacement:274 ci
4.5 L
Bore/Stroke:4.095x5.20 inches
104 x 132 mm
Emissions:Tier 4
Emission control:selective catalytic reduction with diesel exhaust fluid
Rated Power (ECE R120):135 hp
100.7 kW
Maximum Power (ECE R120):169 hp
126.0 kW
Fuel system:electronic high-pressure common rail
Cooling system:viscous fan
Pre-heating:grid heater
 block heater*Optional
Rated RPM:2200
Starter:electric
Starter volts:12
Oil capacity:16 qts
15.1 L
