Massey Ferguson 4235 Transmission


Massey Ferguson 4235 tractor photo
1997 - 2001
4200 Series
Utility tractor
Series:422542354245
Transmissions overview
12-speed mechanical shuttle
18-speed two-speed power shift
12-speed power shuttle
24-speed power shuttle
Transmission
Type:mechanical shuttle
Gears:12 forward and reverse
Clutch:305mm cerametallic disc
Four gears (1-4) in three ranges (L/M/H) with mechanical shuttle.
Speeds
With 16.9R34 rear tires.

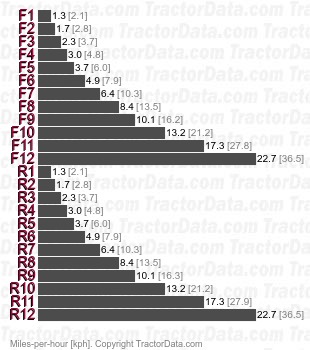

4235  mechanical shuttle speeds
Transmission
Transmission:Speedshift
Type:two-speed power shift
Gears:18 forward and 6 reverse
Clutch:305mm cerametallic disc
Three gears (1-3) plus reverse (R) in three ranges (L/M/H) with push-button Speedshift power shift.
Speeds
With 16.9R34 rear tires.

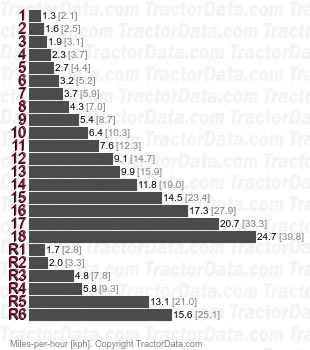

4235 Speedshift two-speed power shift speeds
Transmission
Type:power shuttle
Gears:12 forward and reverse
Clutch:electro-hydraulic wet disc
Four gears (1-4) in three ranges (L/M/H) with power shuttle.
Speeds
With 16.9R34 rear tires.
4235  power shuttle speeds
Transmission
Type:power shuttle
Gears:24 forward and reverse
Clutch:electro-hydraulic wet disc
Four gears (1-4) in three ranges (L/M/H) with power shuttle and push-button two-speed power shift.
Speeds
With 16.9R34 rear tires.

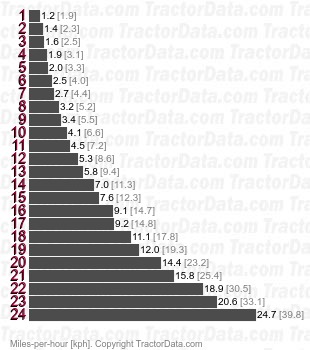

4235  power shuttle speeds
