Massey Ferguson 4220 Transmission



Massey Ferguson 4220 tractor photo
1997 - 2001
4200 Series
Utility tractor
Series:4215 ← 4220 → 4225
Transmissions overview
8-speed mechanical shuttle
12-speed synchromesh
Transmission
Type:mechanical shuttle
Gears:8 forward and reverse
Clutch:305mm dry disc
Four gears (1-4) in two ranges (Low/High) with mechanical shuttle.
Speeds
With 12.4R32 rear tires.
4220 mechanical shuttle speeds
Transmission
Type:synchromesh
Gears:12 forward and 4 reverse
Clutch:305mm dry disc
Three gears (1-3) plus reverse (R) in two ranges (Low/High) with additional two-speed synchronized range shift.
Speeds
With 12.4R32 rear tires.

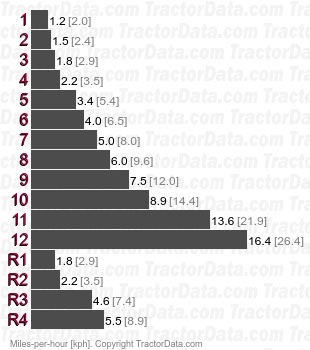

4220 synchromesh speeds
