New Holland T8.410 SmartTrax Tests


New Holland T8.410 SmartTrax tractor photo
2015 -
T8 Series
Half-track Crawler tractor
Series map:
T8.380 SmartTrax
T8.410 SmartTrax
T8.435 SmartTrax
311.0hp
340.0hp
380.0hp
OCED Tractor Test 2149

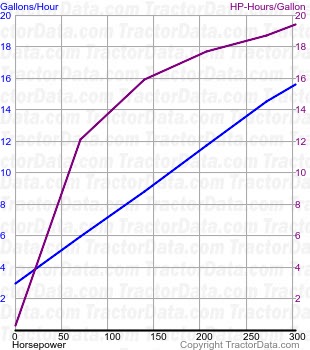

T8.410 SmartTrax fuel use from test 1012
OCED Tractor Test 2149
Diesel 17-speed half-track
April 19 - May 2, 2016
Link: OCED Tractor Test 2149 file
PTO performance
Max power340.17 hp
253.7 kW
Fuel use17.1 gal/hour
64.7 l/hour
Power at rated engine speed302.71 hp
225.7 kW
Fuel use15.6 gal/hour
59.0 l/hour
Power at rated PTO speed340.17 hp
253.7 kW
Fuel use17.1 gal/hour
64.7 l/hour
Drawbar performance
Max power251.58 hp
187.6 kW
Fuel use15.6 gal/hour
59.0 l/hour
Gear 7 used for power test.
Max pull33754 lbs
15310 kg
Gear 3 used for pull test.
