New Holland T8.320 Engine


New Holland T8.320 tractor photo
2015 -
T8 Series
Row-Crop tractor
Series map:
T8.320
T8.350
250.0hp
280.0hp
Engine Detail
FPT
wastegate turbocharged diesel
6-cylinder 24-valve
liquid-cooled
Displacement531 ci
8.7 L
Bore/Stroke4.606x5.315 inches
117 x 135 mm
EmissionsTier IV
Emission controlselective catalytic reduction (SCR)
Rated Power (gross)250 hp
186.4 kW
Maximum Power (gross)320 hp
238.6 kW
Fuel systemelectronic high-pressure common rail
Cooling systemviscous fan
Rated RPM2000
Starterelectric
Starter volts12

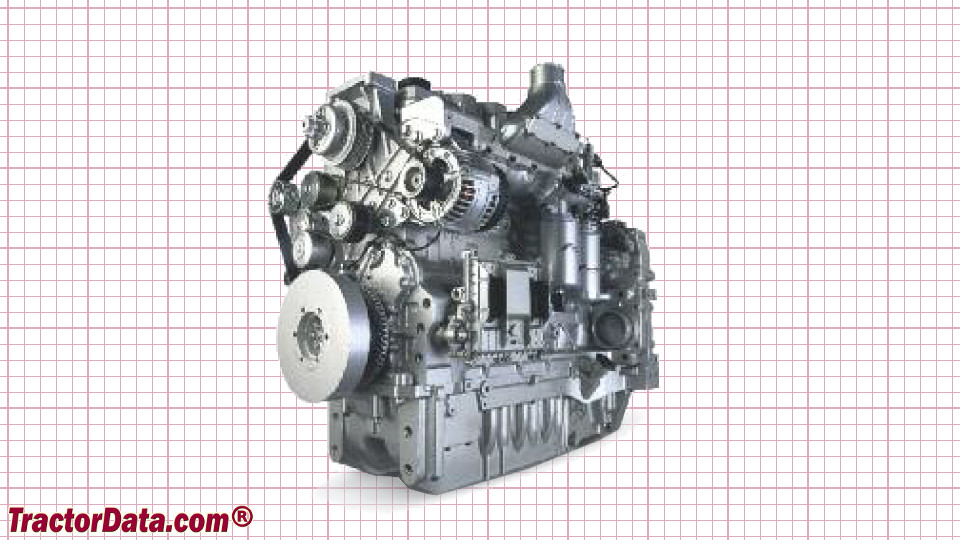

New Holland T8.320 Engine
New Holland T8.320 engine image
