John Deere 4240 Transmission



John Deere 4240 tractor photo
1977 - 1984
4040 Series
Row-Crop tractor
Series:4040S ← 4240 → 4240S
Transmissions overview
16-speed partial power shift
8-speed partially synchronized
8-speed full power shift
13-speed creeper
Transmission
Transmission:Quad-Range
Type:partial power shift
Gears:16 forward and 6 reverse
Clutch:hydraulic wet disc
Speeds
With 18.4-38 rear tires.

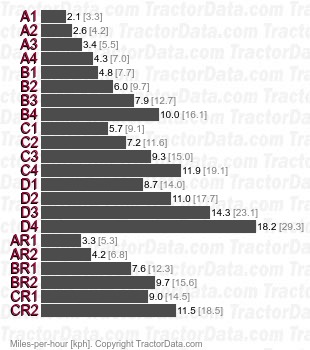

4240 Quad-Range partial power shift speeds
Transmission
Transmission:Syncro-Range
Type:partially synchronized
Gears:8 forward and 2 reverse
Clutch:hydraulic wet disc
Speeds
With 18.4-38 rear tires.
4240 Syncro-Range partially synchronized speeds
Transmission
Transmission:Power Shift
Type:full power shift
Gears:8 forward and 4 reverse
Clutch:hydraulic wet discs
Speeds
With 18.4-38 rear tires.

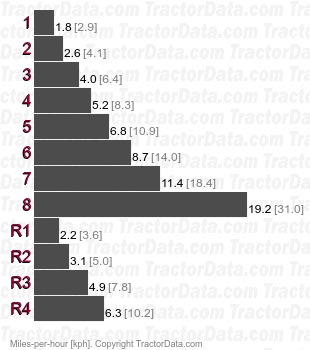

4240 Power Shift full power shift speeds
Transmission
Transmission:Syncro-Range Creeper
Type:creeper
Gears:13 forward and 4 reverse
Clutch:hydraulic wet disc
Speeds
With 18.4-38 rear tires.

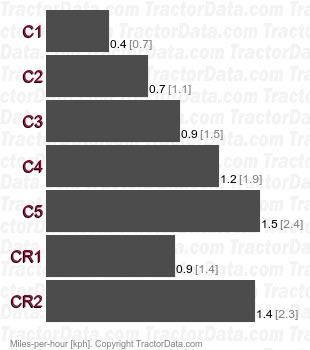

4240 Syncro-Range Creeper creeper speeds
