Tractors > Claas > Xerion 5000

Claas Xerion 5000 Tests



Claas Xerion 5000 tractor photo
2009 - 2025
Model year
Xerion Series
Four-wheel Drive (4WD) tractor
Series map:
Xerion 4500
Xerion 5000
357.2kw
387.8kw
OCED Tractor Test 2175

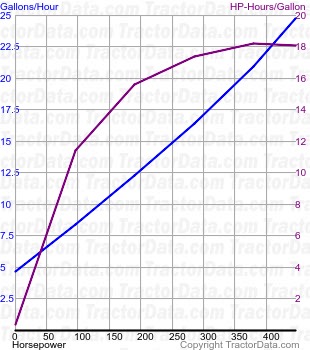

Xerion 5000 fuel use from test 1089
OCED Tractor Test 2175
Diesel CVT 4WD
April 25 - 28, 2017
Link: OCED Tractor Test 2175 file
PTO performance
Max power478.23 hp
356.6 kW
Fuel use24.9 gal/hour
94.2 l/hour
Power at rated engine speed445.84 hp
332.5 kW
Fuel use24.7 gal/hour
93.5 l/hour
Power at rated PTO speed474.61 hp
353.9 kW
Fuel use25.0 gal/hour
94.6 l/hour
Drawbar performance
Max power404.06 hp
301.3 kW
Fuel use24.9 gal/hour
94.2 l/hour
Pull at 9 KPH
Max pull43378 lbs
19676 kg
Pull at 5 KPH
