Tractors > CaseIH > Farmall 140A

CaseIH Farmall 140A Tests



CaseIH Farmall 140A tractor photo
2012 - 2025
Model year
Farmall 100A Series
Utility tractor
Series map:
Farmall 130A
Farmall 140A
130.0hp
140.0hp
OCED Tractor Test 2159A

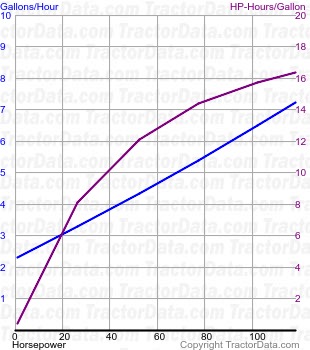

Farmall 140A fuel use from test 1040A
OCED Tractor Test 2159A
Diesel 16-speed 4WD
August 31 - September 7, 2016
Link: OCED Tractor Test 2159A file
PTO performance
Max power122.93 hp
91.7 kW
Fuel use6.9 gal/hour
26.1 l/hour
Power at rated engine speed118.06 hp
88.0 kW
Fuel use7.2 gal/hour
27.3 l/hour
Power at rated PTO speed122.93 hp
91.7 kW
Fuel use6.9 gal/hour
26.1 l/hour
Drawbar performance
Max power100.47 hp
74.9 kW
Fuel use7.2 gal/hour
27.3 l/hour
Max pull9118 lbs
4135 kg
