John Deere 6215 Engine
|
|
| Series: | 6215 | → 6515 |
| Engine Detail | |
| John Deere 4045TL272 | |
| turbocharged diesel | |
| 4-cylinder | |
| liquid-cooled | |
| Displacement: | 275 ci 4.5 L |
| Bore/Stroke: | 4.19x5.00 inches 106 x 127 mm |
| Emissions: | Stage I |
| Rated Power (ECE R24): | 90 hp 67.1 kW |
| Rated Power (EC 97/98): | 94 hp 70.1 kW |
| Maximum Power (EC 97/68): | 97 hp 72.3 kW |
| Rated RPM: | 2300 |
| Idle RPM: | 845-2465 |
| Operating RPM: | 1000-2300 |
| Torque: | 281 lb-ft 381.0 Nm |
| Torque RPM: | 1500 |
| Firing order: | 1-3-4-2 |
| Starter: | electric |
| Starter volts: | 12 |
| Starter power: | 4 hp 3.0 kW |
| Intake valve clearance: | 0.014 inches 0.356 mm |
| Exhaust valve clearance: | 0.018 inches 0.457 mm |

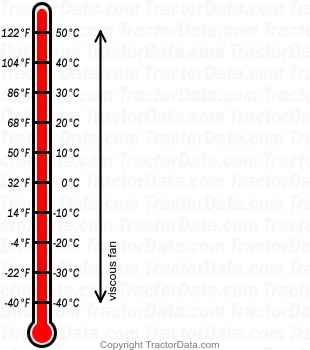

| Engine Oil | |
|
