John Deere 5100E Engine
| | 2013 - 2022 |
|
| 5E Series | | Utility tractor |
|
| Engine Detail |
| John Deere FJDXL04.5305 |
| turbocharged diesel |
| 4-cylinder |
| liquid-cooled inline |
| Displacement: | 276 ci
4.5 L
|
| Bore/Stroke: | 4.19x5.00 inches
106 x 127 mm
|
| Emissions: | selective catalytic reduction (SCR)
|
| Emission control: | Tier IV
|
| Rated Power (EC 97/98): | 100 hp
74.6 kW
|
| Rated RPM: | 2500
|
| Starter: | electric
|
| Starter volts: | 12
|
| Coolant capacity: | 12 qts
11.4 L
|

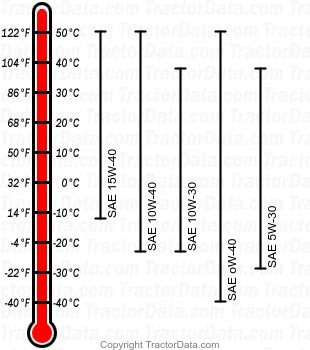

| Engine Oil |
|
| Oil capacity: | 12.8 qts
12.1 L
|
| Oil change: | 500 h
|
