J.I. Case 970 Tests
|
|
| Tractor Tests | |
| NTTL 1068: diesel 12-speed 2WD | |
| NTTL 1078: diesel 8-speed 2WD |

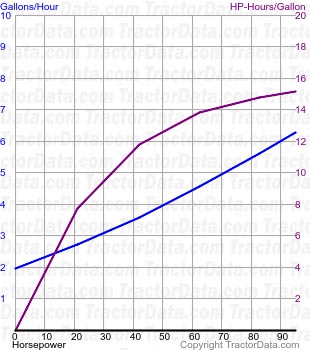

| Nebraska Tractor Test 1068 | |||
| |||
| Nebraska Tractor Test 1068 | |
| Diesel 12-speed 2WD 5/6/1971 Link: Nebraska Tractor Test 1068 file | |
| PTO performance | |
| Power at rated engine speed | 93.41 hp 69.7 kW |
| Fuel use | 6.2 gal/hour 23.5 l/hour |
| Power at rated PTO speed | 93.47 hp 69.7 kW |
| Fuel use | 6.2 gal/hour 23.5 l/hour |
| Drawbar performance | |
| Max power | 79.85 hp 59.5 kW |
| Fuel use | 6.2 gal/hour 23.5 l/hour |
| Gear 2-High used for power test. | |
| Max pull | 11009 lbs 4993 kg |
| Gear 1-Med used for pull test. | |

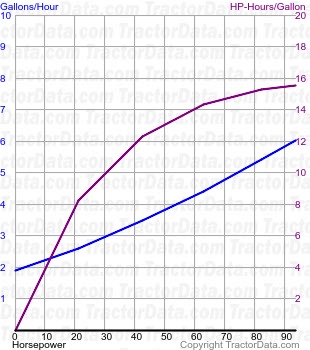

| Nebraska Tractor Test 1078 | |||
| |||
| Nebraska Tractor Test 1078 | |
| Diesel 8-speed 2WD September 9 - 21, 1971 Link: Nebraska Tractor Test 1078 file | |
| PTO performance | |
| Power at rated engine speed | 93.87 hp 70.0 kW |
| Fuel use | 6.0 gal/hour 22.7 l/hour |
| Power at rated PTO speed | 92.11 hp 68.7 kW |
| Fuel use | 5.9 gal/hour 22.3 l/hour |
| Drawbar performance | |
| Max power | 79.90 hp 59.6 kW |
| Fuel use | 5.9 gal/hour 22.3 l/hour |
| Gear 4-Low used for power test. | |
| Max pull | 10,644 lbs 4828 kg |
| Gear 2-Low used for pull test. | |
