Kubota L1-255 Transmission


Kubota L1-255 tractor photo
1988 - 1991
L1 Series
Compact Utility tractor
L1-245
Series:L1-235L1-255L1-275
Transmissions overview
16-speed shuttle
8-speed
Transmission
Type:shuttle
Gears:16 forward and reverse
Clutch:dry disc
Four gears in four ranges with shuttle shift.
Speeds
L1-255  shuttle speeds
Transmission
Transmission:Glideshift
Gears:8 forward and reverse
Clutch:dry disc
Eight gears with shuttle shift.
Speeds

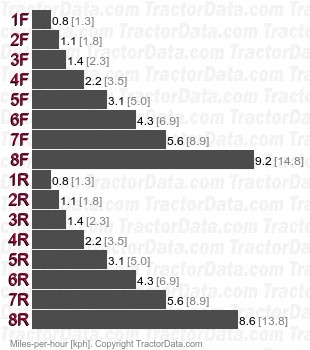

L1-255 Glideshift  speeds
