John Deere 7270R Engine


John Deere 7270R tractor photo
2014 -
7R Series
Row-Crop tractor
Series:7250R7270R7290R
Engine Detail
John Deere PowerTech PVX
variable geometry turbocharger diesel
6-cylinder 24-valve
liquid-cooled inline
Displacement:549 ci
9.0 L
Bore/Stroke:4.66x5.35 inches
118 x 136 mm
Emissions:Stage IIIB
Emission control:cooled exhaust gas recirculation
Rated Power (ECE R24):259 hp
193.1 kW
Rated Power (EC 97/98):270 hp
201.3 kW
Maximum Power (ECE R24):298.4 hp
222.5 kW
Maximum Power (EC 97/68):311 hp
231.9 kW
Fuel system:electronic high-pressure common rail
Compression:16:1
Rated RPM:2100
Operating RPM:1550-2100
Torque:918.3 lb-ft
1245.2 Nm
Torque RPM:1600
Starter:electric
Starter volts:12
Coolant capacity:47 qts
44.5 L
Engine Oil

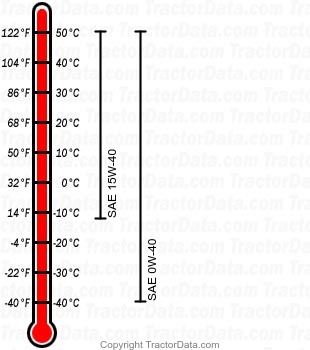

7270R diesel engine oil chart
Oil capacity:28.5 qts
27.0 L
Oil change:500 h
