Tractors > John Deere > 7230R

John Deere 7230R Transmission



John Deere 7230R tractor photo
2014 -
7R Series
Row-Crop tractor
Series map:
7210R
7230R
7250R
156.6kw
171.5kw
186.4kw
Transmission options
20-speed partial power shift
23-speed full power shift
infinitely variable transmission
Transmission
TransmissionJohn Deere CommandQuad Eco
Typepartial power shift
Gears20 forward and reverse
Oil capacity169.1 qts
160.0 L
Four power shift gears (1-4) in five synchronized ranges (A-E) with left-hand reverser.
Speeds
With Group 48 rear tires. 50kph transmission shown. Reverse speeds are about 5% faster than forward. Reverse capped at 30 kph (D4).

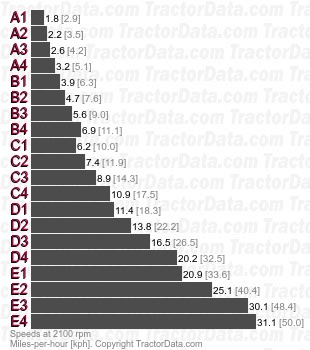

7230R CommandQuad Eco partial power shift speeds
Transmission
TransmissionJohn Deere e23
Typefull power shift
Gears23 forward and 11 reverse
Oil capacity169.1 qts
160.0 L
Speeds
With Group 48 rear tires. Top speed is achieved at reduced engine rpm. F23 at 1855rpm and R11 at 1820rpm.

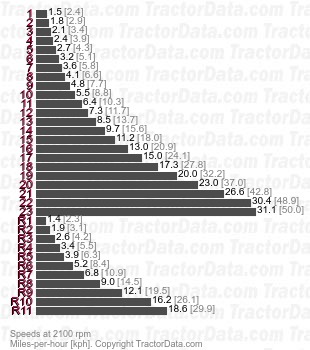

7230R e23 full power shift speeds
Transmission
TransmissionJohn Deere AutoPowr IVT
Typeinfinitely variable transmission
Gearsinfinite forward and reverse
Oil capacity169.1 qts
160.0 L
Speeds

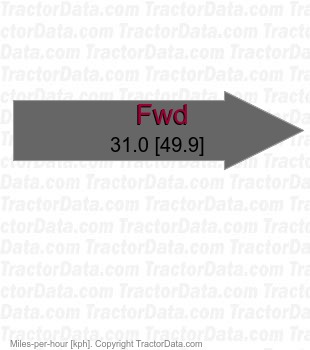

7230R AutoPowr IVT infinitely variable transmission speeds
