New Holland T9.565 Tests



New Holland T9.565 tractor photo
2014 - 2023
T9 Series
Four-wheel Drive (4WD) tractor
Series map:
T9.530
T9.565
T9.600
470.0hp
500.0hp
535.0hp
OCED Tractor Test 2097

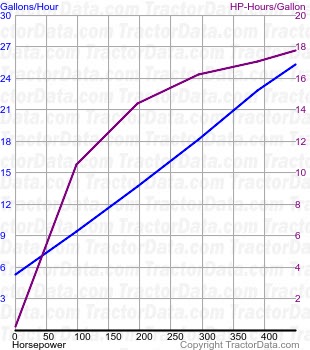

T9.565 fuel use from test 962
OCED Tractor Test 2097
Diesel 16-speed 4WD
September 17 - 24, 2014
Link: OCED Tractor Test 2097 file
PTO performance
Max power504.56 hp
376.3 kW
Fuel use26.9 gal/hour
101.8 l/hour
Power at rated engine speed449.14 hp
334.9 kW
Fuel use25.3 gal/hour
95.8 l/hour
Power at rated PTO speed496.01 hp
369.9 kW
Fuel use26.1 gal/hour
98.8 l/hour
Drawbar performance
Max power417.77 hp
311.5 kW
Fuel use25.3 gal/hour
95.8 l/hour
Gear 6 used for power test.
Max pull46053 lbs
20889 kg
Gear 2 used for pull test.
