New Holland T9.435 Tests

New Holland T9.435 tractor photo
2014 - 2023
T9 Series
Four-wheel Drive (4WD) tractor
Series map:
OCED Tractor Test 2092A

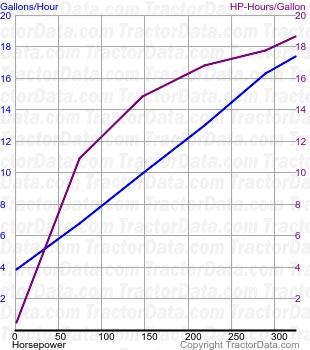

T9.435 fuel use from test 957A
OCED Tractor Test 2092A
Diesel 16-speed 4WD
September 9 - 29, 2014
Link: OCED Tractor Test 2092A file
PTO performance
Max power366.46 hp
273.3 kW
Fuel use19.2 gal/hour
72.7 l/hour
Power at rated engine speed323.32 hp
241.1 kW
Fuel use17.4 gal/hour
65.9 l/hour
Power at rated PTO speed364.07 hp
271.5 kW
Fuel use19.0 gal/hour
71.9 l/hour
Drawbar performance
Max power300.99 hp
224.4 kW
Fuel use17.4 gal/hour
65.9 l/hour
Gear 4 used for power test.
Max pull37687 lbs
17094 kg
Gear 1 used for pull test.
