John Deere 5055E Transmission



John Deere 5055E tractor photo
2008 - 2022
Model year
5E Series
Utility tractor
Series map:
5045E
5055E
5065E
50.0hp
59.0hp
67.0hp
Transmissions overview
9-speed partially synchronized
12-speed partially synchronized power shuttle
Transmission
TransmissionTop-Shaft Synchronized (TSS)
Typepartially synchronized
Gears9 forward and 3 reverse
Clutch279.4mm dry disc
Three gears (1-3) plus reverse (R) in three ranges (A-C). Gear shifts are synchronized using the foot clutch.
Speeds
With 14.9-28 rear tires.

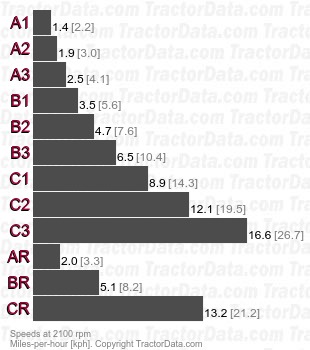

5055E Top-Shaft Synchronized (TSS) partially synchronized speeds
Transmission
TransmissionPowrReverser
Typepartially synchronized power shuttle
Gears12 forward and reverse
Clutch279.4mm wet disc
Four synchronized gears (1-4) in three non-synchronized ranges (A-C). Left-hand power shuttle lever.
Speeds
With 16.9-28 rear tires. Reverse speeds are 9% faster than forward.

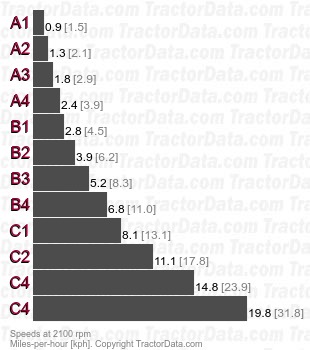

5055E PowrReverser partially synchronized power shuttle speeds
