Tractors > CaseIH > JX85 Maxxima

CaseIH JX85 Maxxima Tests



CaseIH JX85 Maxxima tractor photo
2002 - 2006
Model year
JX Series
Utility tractor
Turk Tractor built
Series map:
JX75
JX85
JX95
72.0hp
85.0hp
93.0hp
OCED Tractor Test 2177

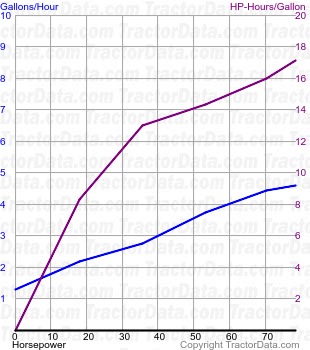

JX85 Maxxima fuel use from test 462
OCED Tractor Test 2177
Diesel 12-speed 4WD
July 2004 - August 2004,
Link: OCED Tractor Test 2177 file
PTO performance
Power at rated engine speed78.4 hp
58.5 kW
Fuel use4.6 gal/hour
17.4 l/hour
Power at rated PTO speed76.4 hp
57.0 kW
Fuel use4.3 gal/hour
16.3 l/hour
Drawbar performance
Max power60.9 hp
45.4 kW
Fuel use4.6 gal/hour
17.4 l/hour
Max pull6520 lbs
2957 kg
