CaseIH 1455 XL Transmission


CaseIH 1455 XL tractor photo
1985 - 1996
55 Series
Row-Crop tractor
1455 XL
Series:1255 XL1455 XL
Transmissions overview
12-speed fully synchronized
20-speed fully synchronized
Transmission
Transmission:ZF
Type:fully synchronized

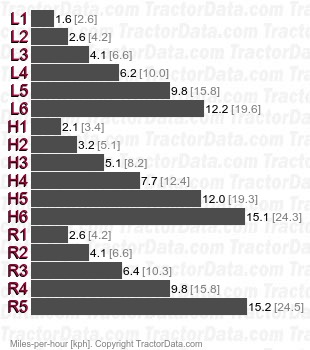

Gears:12 forward and 5 reverse
Oil capacity:42.3 qts
40.0 L
Six gears (1-6) in two ranges (low/high), plus reverse range.
Speeds
1455 XL  fully synchronized speeds
Transmission
Type:fully synchronized

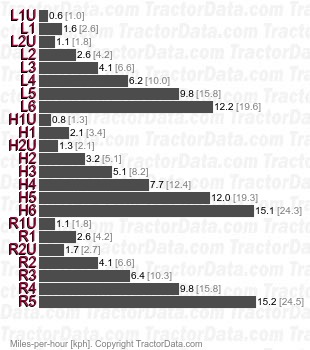

Gears:20 forward and 9 reverse
Six gears (1-6) in two ranges (low/high), plus reverse range with a underdrive for gears 1 and 2 in both ranges.
Speeds
1455 XL  fully synchronized speeds
