CaseIH 844 XL Transmission


CaseIH 844 XL tractor photo
1985 - 1987
Utility tractor
Series:745 XL844 XL856 XL
Transmissions overview
16-speed
8-speed
Transmission
Transmission:IH-Total-synchron
Gears:16 forward and 8 reverse
Speeds
With 16.9R34 rear tires.

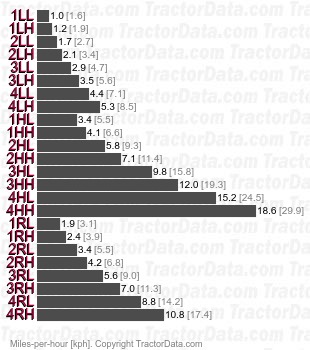

844 XL IH-Total-synchron  speeds
Transmission
Gears:8 forward and 4 reverse
