John Deere 5065E Transmission


John Deere 5065E tractor photo
2008 - 2022
Model year
5E Series
Utility tractor
Series map:
5055E
5065E
5075E
55.0hp
65.0hp
75.0hp
Transmission options
9-speed partially synchronized
12-speed partially synchronized
Transmission
TransmissionSyncShuttle
Typepartially synchronized
Gears9 forward and 3 reverse
Clutchdry disc
Three gears (1-3) plus reverse (R) in three ranges (A-C). Gear shifts are synchronized using the foot clutch.
Speeds
With 16.9-28 rear tires.

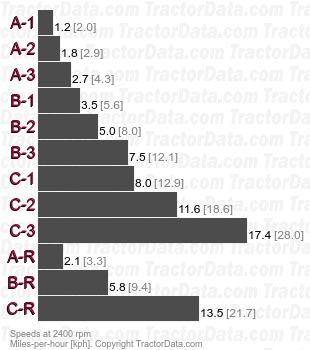

5065E SyncShuttle partially synchronized speeds
Transmission
TransmissionPowrReverser
Typepartially synchronized
Gears12 forward and reverse
Clutchwet disc
Four synchronized gears (1-4) in three non-synchronized ranges (A-C) with lever hand power shuttle.
Speeds
With 16.9-28 rear tires.

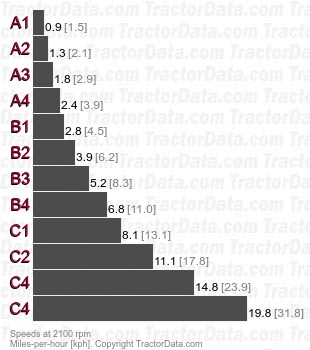

5065E PowrReverser partially synchronized speeds
