Tractors > Ford > 5000

Ford 5000 Engine



Ford 5000 tractor photo
1965 - 1976
Model year
Row-Crop tractor
Series map:
5000
70.0hp
Engines overview
Ford 4.2L 4-cyl diesel
Ford 4.2L 4-cyl gasoline
Engine Detail
Ford
diesel
4-cylinder
liquid-cooled
Displacement256 ci
4.2 L
Bore/Stroke4.40x4.20 inches
112 x 107 mm
Power70 hp
52.2 kW
Air cleaneroil bath
Compression16.5:1
Rated RPM2100
Torque199 lb-ft
269.8 Nm
Torque RPM1300
Starter volts12

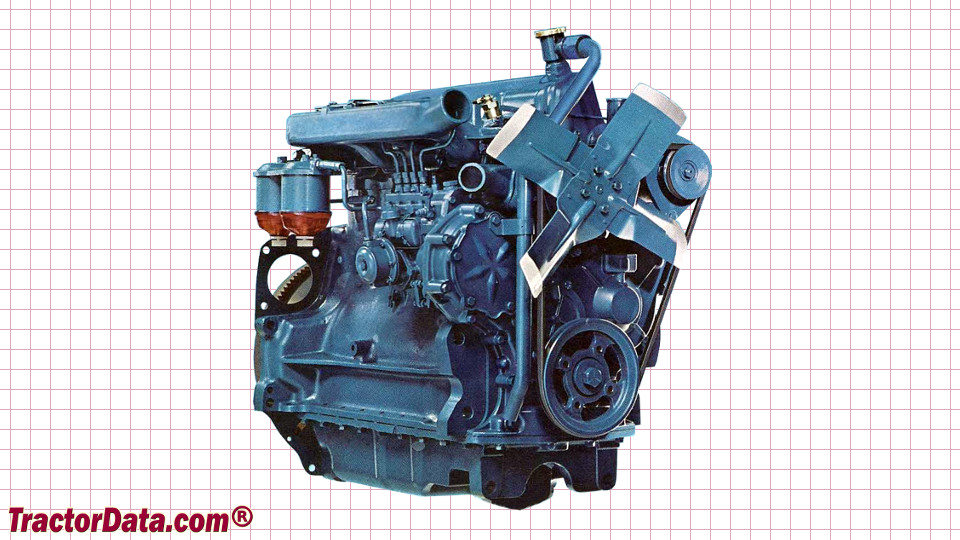

Ford 5000 Engine
Ford 5000 engine image
Engine Detail
Ford
gasoline
4-cylinder
liquid-cooled
Displacement256 ci
4.2 L
Bore/Stroke4.40x4.20 inches
112 x 107 mm
Power71 hp
52.9 kW
Air cleaneroil bath
Compression7.75:1
Rated RPM2100
Torque207 lb-ft
280.7 Nm
Torque RPM1000
Starter volts12
