John Deere 5101EN Engine



John Deere 5101EN tractor photo
2008 - 2022
Model year
5E Limited Series
Orchard/Vineyard tractor
Series map:
5093EN
5101EN
93.0hp
101.0hp
Engine Detail
John Deere 4
turbocharged diesel
4-cylinder
liquid-cooled inline
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
EmissionsTier 3
Rated Power (gross)101 hp
75.3 kW
Fuel systemdirect injection
Air cleanerdual element dry
Compression19:1
Rated RPM2400
Idle RPM850-2600
Operating RPM1000-2400
Firing order1-3-4-2
Starterelectric
Starter volts12
Coolant capacity12 qts
11.4 L
Engine Oil

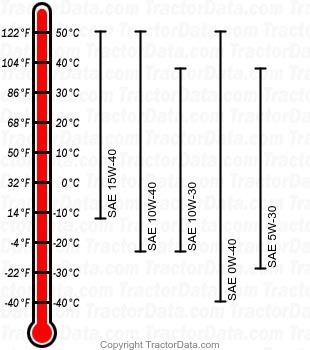

5101EN diesel engine oil chart
Oil capacity9 qts
8.5 L
Oil change250 h
 500 h (JD PLUS-50 oil)
