John Deere 5093EN Transmission
|
|
| Transmission options | |
| 12-speed partially synchronized power shuttle | |
| 24-speed two-speed power shift |
| Transmission | |
| Transmission | PowrReverser |
| Type | partially synchronized power shuttle |
| Gears | 12 forward and reverse |
| Clutch | hydraulic wet disc |
| Oil capacity | 46 qts 43.5 L |
| Four gears (1-4) in the ranges (A-C) with left hand power shuttle lever. Shifts between gears are synchronized, using the clutch. Tractor must be stopped, and clutch used, to shift gears. | |

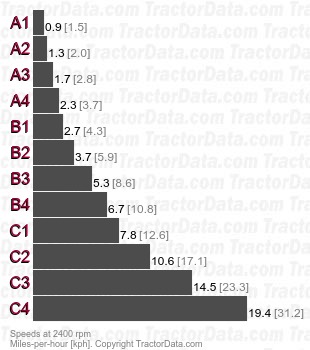

| Speeds | |
| With 12.4-24 R1 rear tires. Reverse speeds about 10% faster than forward speeds. | |
|
| Transmission | |
| Transmission | PowrReverser Hi/Lo |
| Type | two-speed power shift |
| Gears | 24 forward and 12 reverse |
| Clutch | hydraulic wet disc |
| Oil capacity | 48 qts 45.4 L |
| The Hi/Lo option adds a two-speed push button power shift to the PowrReverser transmission. | |

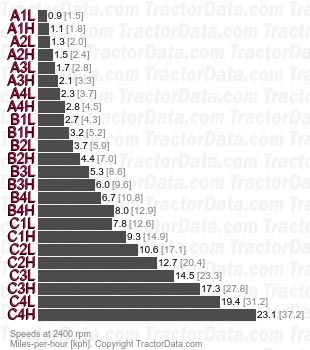

| Speeds | |
| With 12.4-24 R1 rear tires. | |
|
