John Deere 5101EN Engine


John Deere 5101EN tractor photo
2008 - 2022
Model year
5E Limited Series
Orchard/Vineyard tractor
Series:5093EN5101EN
Engine Detail
John Deere 4
turbocharged diesel
4-cylinder
liquid-cooled inline
Displacement:276 ci
4.5 L
Bore/Stroke:4.19x5.00 inches
106 x 127 mm
Emissions:Tier 2
Power (gross):99 hp
73.8 kW
Fuel system:direct injection
Compression:17.6:1
Rated RPM:2400
Idle RPM:825-2625
Firing order:1-3-4-2
Starter:electric
Starter volts:12
Coolant capacity:12 qts
11.4 L
Engine Oil

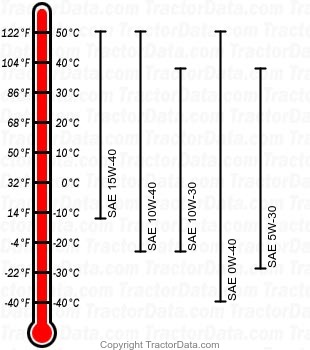

5101EN diesel engine oil chart
Oil capacity:9 qts
8.5 L
Oil change:300 h

 500 h
(JD PLUS-50 oil)
