Tractors > Massey Ferguson > 390

Massey Ferguson 390 Tests



Massey Ferguson 390 tractor photo
1987 - 1997
Model year
300 Series
Utility tractor
290 ↑
Series:383 ← 390 → 398
OCED Tractor Test 1102

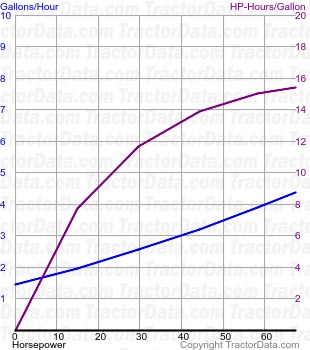

390 fuel use from test 33
OCED Tractor Test 1102
Diesel 12-speed 2WD
June 1987 - September 1987,
Link: OCED Tractor Test 1102 file
PTO performance
Power at rated engine speed:67.3 hp
50.2 kW
Fuel use:4.4 gal/hour
16.7 l/hour
Power at rated PTO speed:63.8 hp
47.6 kW
Fuel use:3.9 gal/hour
14.8 l/hour
Drawbar performance
Max power:55.5 hp
41.4 kW
Fuel use:4.3 gal/hour
16.3 l/hour
Gear 2HM used for power test.
Max pull:5015 lbs
2274 kg
Gear 3L used for pull test.
OCED Tractor Test 1101

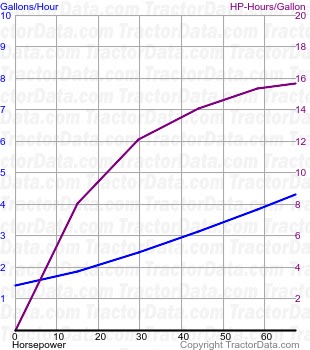

390 fuel use from test 34
OCED Tractor Test 1101
Diesel 12-speed 4WD
June 1987 - September 1987,
Link: OCED Tractor Test 1101 file
PTO performance
Power at rated engine speed:67.3 hp
50.2 kW
Fuel use:4.3 gal/hour
16.3 l/hour
Power at rated PTO speed:63.4 hp
47.3 kW
Fuel use:3.8 gal/hour
14.4 l/hour
Drawbar performance
Max power:55.4 hp
41.3 kW
Fuel use:4.5 gal/hour
17.0 l/hour
Gear 2HL used for power test.
Max pull:6790 lbs
3079 kg
Gear 2LH used for pull test.
