Versatile 305 Tests


Versatile 305 tractor photo
2012 - 2014
Row-Crop tractor
Series map:
280
305
280.0hp
305.0hp
OCED Tractor Test 1997

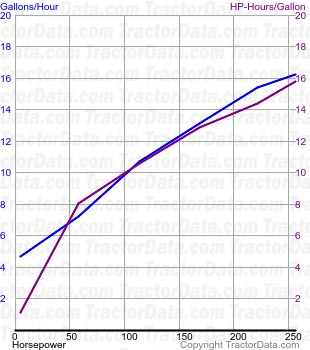

305 fuel use from test 778
OCED Tractor Test 1997
Diesel 16-speed 4WD
June 21 - 24, 2011
Link: OCED Tractor Test 1997 file
PTO performance
Max power314.39 hp
234.4 kW
Fuel use17.9 gal/hour
67.8 l/hour
Power at rated engine speed255.79 hp
190.7 kW
Fuel use16.2 gal/hour
61.3 l/hour
Power at rated PTO speed313.79 hp
234.0 kW
Fuel use17.7 gal/hour
67.0 l/hour
Drawbar performance
Max power210.50 hp
157.0 kW
Fuel use16.3 gal/hour
61.7 l/hour
Gear 7 used for power test.
Max pull19358 lbs
8780 kg
Gear 5 used for pull test.
