Tractors > CaseIH > Puma 220

CaseIH Puma 220 Tests



CaseIH Puma 220 tractor photo
2014 - 2025
Model year
Puma Series
Row-Crop tractor
Series map:
Puma 200
Puma 220
Puma 240
200.0hp
220.0hp
240.0hp
OCED Tractor Test 2962

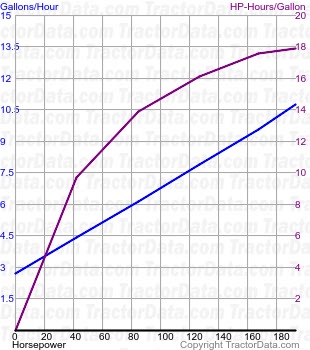

Puma 220 fuel use from test 1084
OCED Tractor Test 2962
Diesel CVT 4WD
July 2015 - March 2016,
Link: OCED Tractor Test 2962 file
PTO performance
Max power209.6 hp
156.3 kW
Fuel use11.2 gal/hour
42.4 l/hour
Power at rated engine speed192.6 hp
143.6 kW
Fuel use10.8 gal/hour
40.9 l/hour
Power at rated PTO speed205.8 hp
153.5 kW
Fuel use11.2 gal/hour
42.4 l/hour
Drawbar performance
Max power156.5 hp
116.7 kW
Fuel use11.2 gal/hour
42.4 l/hour
Pull at 10.0 KPH
Max pull17785 lbs
8067 kg
Pull at 7.0 KPH
Page information
