| | 2014 - |
| 4R Series | | Compact Utility tractor |
|
Series map:
4052R
4066R
50.8hp
65.0hp
| Engine Detail |
| Yanmar 4TNV86 |
| turbocharged diesel |
| 4-cylinder |
| liquid-cooled |
| Displacement | 127.5 ci
2.1 L
|
| Bore/Stroke | 3.39x3.54 inches
86 x 90 mm
|
| Emissions | Tier IV
|
| Emission control | diesel particulate filter (DPF)
|
| Rated Power (EC 97/98) | 65.0 hp
48.5 kW
|
| Fuel system | high-pressure common rail
|
| Compression | 19.1:1
|
| Rated RPM | 2600
|
| Starter | electric
|
| Starter volts | 12
|
| Oil capacity | 5.6 qts
5.3 L
|

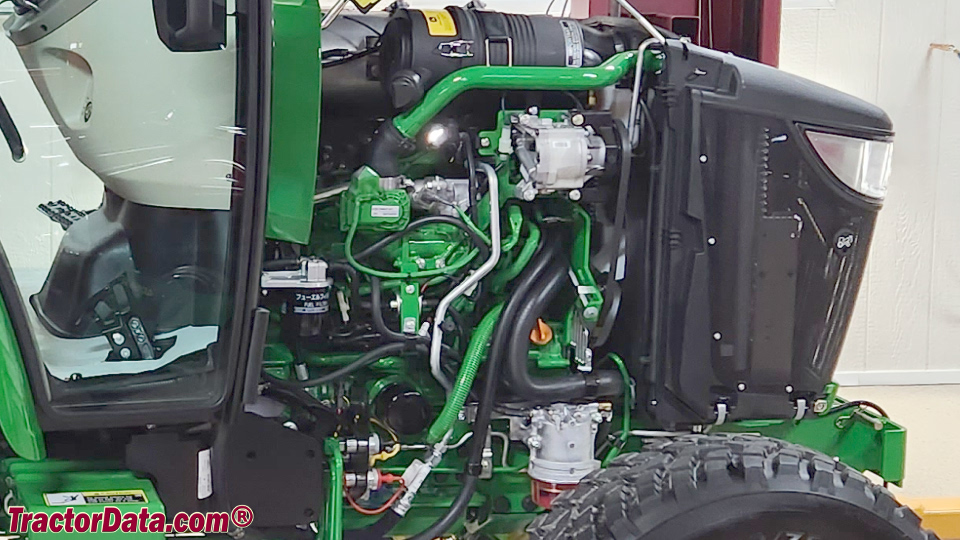

| John Deere 4066R Engine |
 |
| Image courtesy of Jeff Zuress |
