| 2008 - 2016 |
|
6D Series | Utility tractor |
|
Transmissions overview |
9-speed partially synchronized |
12-speed partially synchronized |
24-speed partially synchronized |
Transmission |
Transmission: | Top Shaft Synchronized PowrReverser
|
Type: | partially synchronized
|
Gears: | 9 forward and reverse
|
Clutch: | wet disc
|
Three synchronized gears (1-3) in three ranges (A-C) with power shuttle. Tractor must be stopped to shift ranges. |

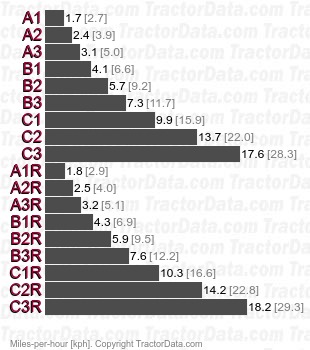

Speeds |
With 18.4-34 rear tires. |
|
Transmission |
Transmission: | 12-Speed PowrReverser
|
Type: | partially synchronized
|
Gears: | 12 forward and reverse
|
Clutch: | wet disc
|
Four synchronized gears (1-4) in three ranges (A-C) with power shuttle. Tractor must be stopped to shift ranges. The 12-speed transmission became standard in 2014. |
Transmission |
Transmission: | Hi-Lo PowrReverser
|
Type: | partially synchronized
|
Gears: | 24 forward and 12 reverse
|
Clutch: | wet disc
|
Four synchronized gears (1-4) in three ranges (A-C) with power shuttle and two-speed high/low shift. Tractor must be stopped to shift ranges. The high-low became an optiona transmission in 2014. |
