| | 2011 - 2013 |
| MT600D Series | | Row-Crop tractor |
|
Series map:
MT675D
MT685D
320.0hp
340.0hp
| Engine Detail |
| AGCO Power |
| turbocharged air-to-air intercooled diesel |
| 6-cylinder |
| liquid-cooled |
| Displacement | 513.8 ci
8.4 L
|
| Bore/Stroke | 4.370x5.709 inches
111 x 145 mm
|
| Emissions | Interim Tier IV
|
| Emission control | selective catalytic reduction (SCR)
|
| Power (gross) | 340 hp
253.5 kW
|
| Maximum Power | 370 hp
275.9 kW
|
| Fuel system | electronic high-pressure common rail
|
| Pre-heating | thermostart
|
| Compression | 16.7:1
|
| Rated RPM | 2100
|
| Starter | electric
|
| Starter volts | 12
|

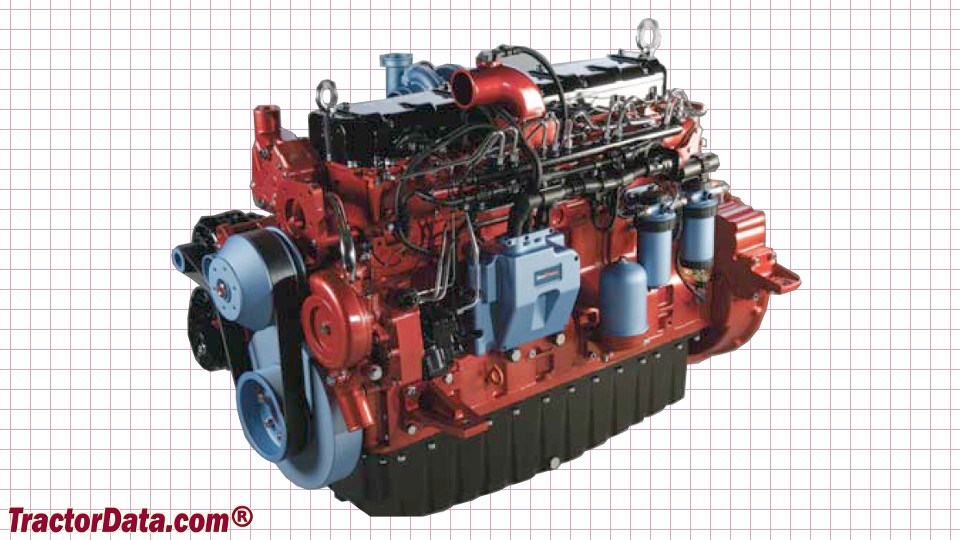

| Challenger MT685D Engine |
 |
