John Deere 7230R Transmission

John Deere 7230R tractor photo
2011 - 2019
Model year
7R Series
Row-Crop tractor
7R 230
Transmissions overview
20-speed power shift
23-speed full power shift
infinitely variable transmission
Transmission:John Deere CommandQuad Eco
Type:power shift
Gears:20 forward and reverse
Clutch:hydraulic wet disc
Four power shift gears (1-4) in five synchronized ranges (A-E) with left-hand reverser. Manual and automatic shift modes for range and gear.
With Group 47 rear tires and 50 kph option. Reverse speeds about 4% faster. Speeds in E3/E4 locked in 40kph transmission.
7230R CommandQuad Eco power shift speeds
Transmission:John Deere e23
Type:full power shift
Gears:23 forward and 11 reverse
Clutch:hydraulic wet disc
Full power shift transmission with manual, automatic, and custom-programmed shift modes. Available in 40 KPH or 50 KPH versions.
With Group 48 rear tires and 50 kph option.

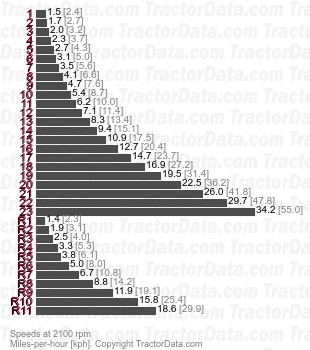

7230R e23 full power shift speeds
Transmission:John Deere AutoPowr IVT
Type:infinitely variable transmission
Gears:infinite forward and reverse
Hydro-mechanical transmission with infinite speed ranges. Available in 40 KPH and 50 KPH versions.
With 50 KPH speed option.

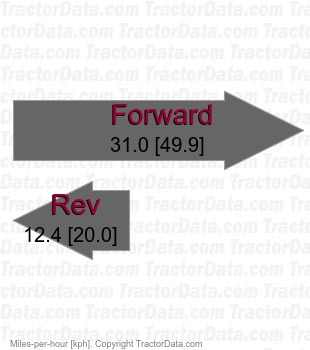

7230R AutoPowr IVT infinitely variable transmission speeds
