| | 1936 - 1942 |
| Agricultural Crawler tractor |
|
Series map:
AG
33.6hp*
*Estimated engine power for comparison only.
| Nebraska Tractor Test 260 |
|
|
| Nebraska Tractor Test 260 |
Gasoline https://digitalcommons.unl.edu/cgi/viewcontent.cgi?article=1888&context=tractormuseumlit crawler
June 16 - 26, 1936 |
| Belt power (max) | 30.25 hp
22.6 kW
|

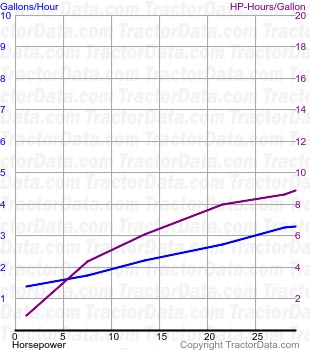

| Belt fuel use (max) | 3.5 gal/hour
13.2 l/hour
|
| Drawbar performance |
| Max power | 24.44 hp
18.2 kW
|
| Gear 2 used for power test. |
| Max pull | 5254 lbs
2383 kg
|
| Gear 1 used for pull test. |
