| | 1999 - 2006 |
| M Series | | Orchard/Vineyard tractor |
|
| Transmission |
| Type: | partially synchronized
|
| Gears: | 12 forward and reverse
|
| Clutch: | 300mm dry disc
|
| Oil capacity: | 54.8 qts
51.9 L
|
| Four gears (1-4) in three ranges (creeper, low, and high). Synchronized shifting between gears and synchronized shuttle shifting. |

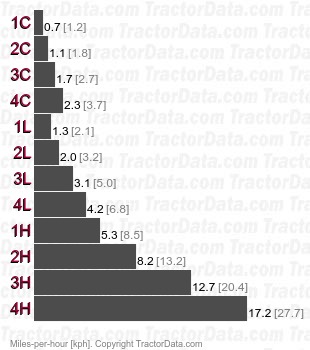

| Speeds |
|
