New Holland T4.75 Transmission


New Holland T4.75 tractor photo
2012 - 2017
Model year
T4 PowerStar Series
Utility tractor
Series:T4.75T4.90
Transmissions overview
8-speed partially synchronized mechanical shuttle
8-speed power shuttle
12-speed mechanical shuttle
12-speed power shuttle
Transmission
Type:partially synchronized mechanical shuttle
Gears:8 forward and reverse
Four gears in two ranges. Gear shifts and shuttle are synchronized with the clutch. Tractor must be stopped to shift ranges. Optional creeper provdes an additional four speeds.
Speeds

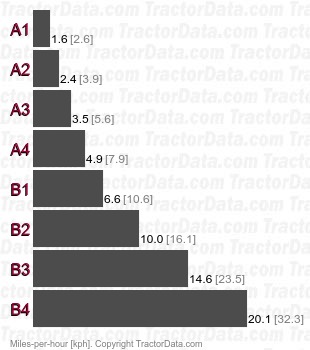

T4.75  partially synchronized mechanical shuttle speeds
Transmission
Type:power shuttle
Gears:8 forward and reverse
Four gears in two ranges. Left-hand hydraulic power shuttle. Optional creeper provides an additional four speeds.
Transmission
Type:mechanical shuttle
Gears:12 forward and reverse
Four gears in three ranges. Optional creeper provides an additional eight speeds.
Speeds

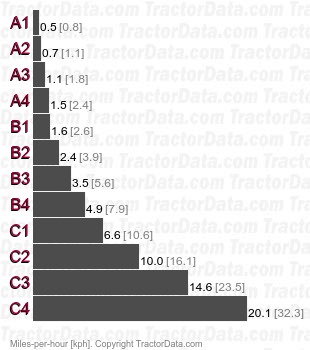

T4.75  mechanical shuttle speeds
Transmission
Type:power shuttle
Gears:12 forward and reverse
Four gears in three ranges. Optional creeper provdes an additional eight speeds.
