New Holland TD5030 Tests

New Holland TD5030 tractor photo
2009 - ????
TD5000 Series
Utility tractor
Turk Tractor built
OCED Tractor Test 2583

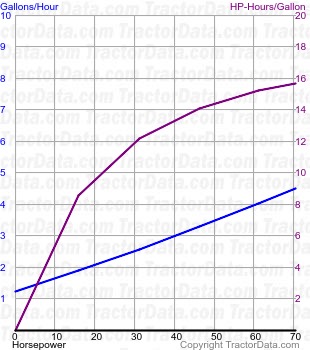

TD5030 fuel use from test 765
OCED Tractor Test 2583
Diesel 12-speed 4WD
December 2008 - January 2009,
Link: OCED Tractor Test 2583 file
PTO performance
Max power:72.1 hp
53.8 kW
Fuel use:4.4 gal/hour
16.7 l/hour
Power at rated engine speed:70.3 hp
52.4 kW
Fuel use:4.5 gal/hour
17.0 l/hour
Power at rated PTO speed:70.9 hp
52.9 kW
Fuel use:4.1 gal/hour
15.5 l/hour
Drawbar performance
Max power:59.7 hp
44.5 kW
Fuel use:4.2 gal/hour
15.9 l/hour
Max pull:4,795 lbs
2175 kg
