Tractors > John Deere > 6125J

John Deere 6125J Transmission



John Deere 6125J tractor photo
2010 -
6J Series
Utility tractor
Series map:
6110J
6125J
6145J
82.0kw
93.2kw
108.1kw
Transmission options
12-speed fully synchronized
16-speed partial power shift
Transmission
TransmissionJohn Deere SyncroPlus
Typefully synchronized
Gears12 forward and 4 reverse
Clutchhydraulic wet discs
Oil type
JD Hy-Gard
Three synchronized gears (1-3) in four synchronized ranges (A-D).
Speeds
With 23.1-30 R1 rear tires.

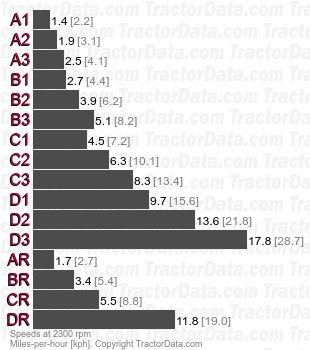

6125J SyncroPlus fully synchronized speeds
Transmission
TransmissionJohn Deere PowrQuad
Typepartial power shift
Gears16 forward and reverse
Clutchhydraulic wet discs
Oil type
JD Hy-Gard
Four power shift gears (1-4) in four synchronized ranges (A-D).
Speeds
With 23.1-30 R1 rear tires. Reverse speeds are 15% faster than forward.

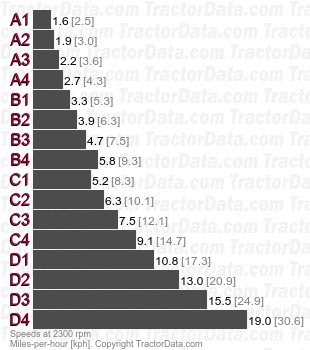

6125J PowrQuad partial power shift speeds
