Tractors > John Deere > 7815

John Deere 7815 Engine



John Deere 7815 tractor photo
2005 - 2010
Row-Crop tractor
Series map:
7715
7815
135.7kw
150.6kw
Engine Detail
John Deere
diesel
6-cylinder
liquid-cooled
Displacement414 ci
6.8 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Power202 hp
150.6 kW
Fuel systemDE10 electronic rotary injection
Air cleanerdry with pre-cleaner
Compression17:1
Rated RPM2100
Idle RPM875-2200
Torque677.1 lb-ft
918.1 Nm
Torque RPM1400
Starter volts12
Coolant capacity30.9 qts
29.2 L
Engine Oil

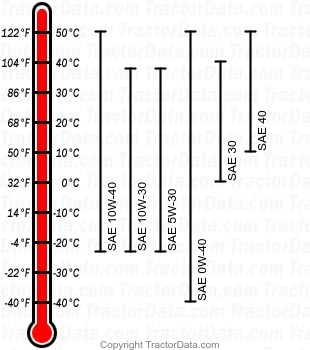

7815 diesel engine oil chart
Oil capacity27.5 qts
26.0 L
Oil change250 h
