Tractors > John Deere > 9510R

John Deere 9510R Tests



John Deere 9510R tractor photo
2012 - 2014
9R/RT Series
Four-wheel Drive (4WD) tractor
Series map:
9460R
9510R
9560R
460.0hp
510.0hp
560.0hp
OCED Tractor Test 2042

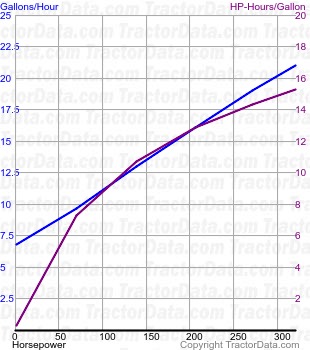

9510R fuel use from test 833
OCED Tractor Test 2042
Diesel 18-seed 4WD
October 23 - 31, 2012
Link: OCED Tractor Test 2042 file
PTO performance
Max power368.33 hp
274.7 kW
Power at rated engine speed320.07 hp
238.7 kW
Fuel use21.0 gal/hour
79.5 l/hour
Power at rated PTO speed360.20 hp
268.6 kW
Fuel use21.5 gal/hour
81.4 l/hour
Drawbar performance
Max power410.97 hp
306.5 kW
Fuel use26.9 gal/hour
101.8 l/hour
Gear 7 used for power test.
Max pull44915 lbs
20373 kg
Gear 1 used for pull test.
