Tractors > John Deere > 9410R

John Deere 9410R Transmission



John Deere 9410R tractor photo
2012 - 2014
9R/RT Series
Four-wheel Drive (4WD) tractor
Series map:
9360R
9410R
9460R
360.0hp
410.0hp
460.0hp
Transmission options
24-speed partial power shift
18-speed full power shift
Transmission
TransmissionJohn Deere PowrSync
Typepartial power shift
Gears24 forward and 6 reverse
Clutchhydraulic wet disc
Three gears (1-3) in four ranges (A-D) with high-low power shift. Synchronized shifting between gears and ranges.
Speeds
With Group 47 rear tires.

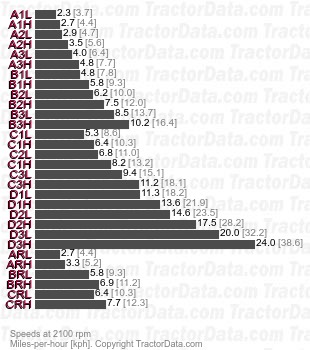

9410R PowrSync partial power shift speeds
Transmission
TransmissionJohn Deere PowerShift
Typefull power shift
Gears18 forward and 6 reverse
Clutchhydraulic wet disc
Speeds
With Group 47 rear tires.

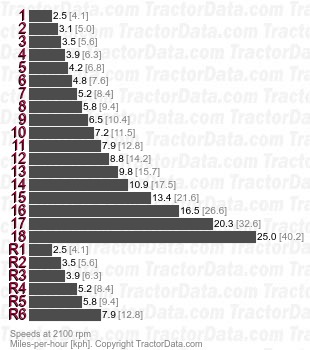

9410R PowerShift full power shift speeds
