Tractors > International Harvester > TD-14A

International Harvester TD-14A Tests



International Harvester TD-14A tractor photo
1949 - 1958
Model year
Agricultural Crawler tractor
Series map:
TD-14A
80.0hp*
*Estimated engine power for comparison only.
Nebraska Tractor Test 445

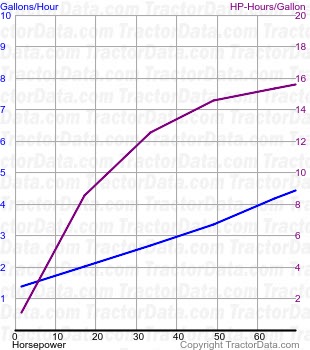

TD-14A fuel use from test 445
Nebraska Tractor Test 445
Diesel 6-speed crawler
June 26 - July 1, 1950
Link: Nebraska Tractor Test 445 file
Belt power (max)71.79 hp
53.5 kW
Belt fuel use (max)4.7 gal/hour
17.8 l/hour
Drawbar performance
Max power62.68 hp
46.7 kW
Gear 2 used for power test.
Max pull14,652 lbs
6646 kg
Gear 1 used for pull test.
