Oliver G1355 Transmission


Series map:
G955
G1355
108.9hp*
163.3hp*
*Estimated engine power for comparison only.

Note: the Oliver model G1355 is the same as the Minneapolis-Moline G1355. The following data is from the G1355 listing.
Transmissions overview
6-speed gear
18-speed three-range power shift
Transmission
Typegear
Gears6 forward and 2 reverse
Clutch355.6mm dry disc
Oil capacity43 qts
40.7 L
Speeds
With 18.4-38 rear tires.
G1355  gear speeds
Transmission
TransmissionHydraul-Shift
Typethree-range power shift
Gears18 forward and 6 reverse
Clutch355.6mm dry disc
Speeds
With 18.4-38 rear tires.

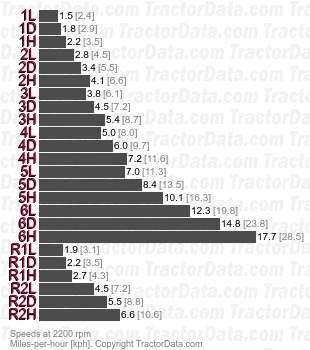

G1355 Hydraul-Shift three-range power shift speeds
